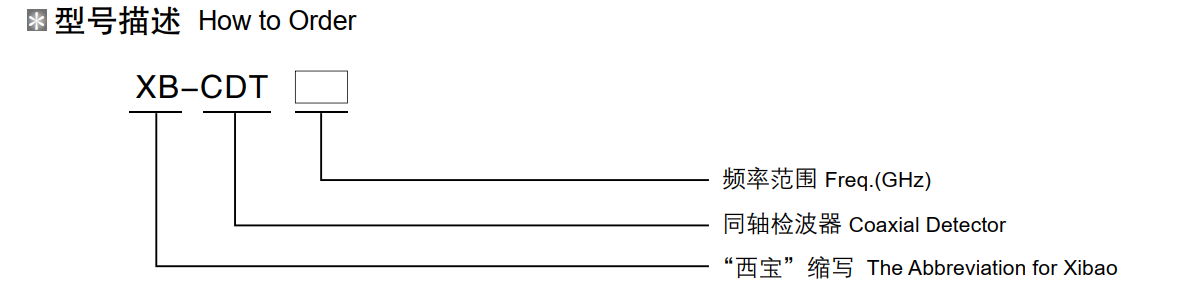

型号及指标 Model & Specifications
|
型号 Model |
频率 Freq （GHz） |
驻波比 VSWR |
灵敏度 Sensivity |
响应速度 Response Speed |
抗烧毁功率 Anti-burning power |
接头 Connector |
尺寸 Dimension A (mm) |
|
XB-CDT-4 |
1~4 |
≤ 2 |
0.1mv/1uw |
≤ 2us |
50mw |
SMA-SMA/JK N-BNC/JK |
37 60 |
|
XB-CDT-12 |
1~12 |
≤ 2 |
0.1mv/1uw |
≤ 2us |
50mw |
SMA-SMA/JK N-BNC/JK |
37 60 |
|
XB-CDT-18 |
1~18 |
≤ 2.5 |
0.1mv/1uw |
≤ 2us |
50mw |
SMA-SMA/JK N-BNC/JK |
37 60 |
|
XB-CDT-20 |
1~20 |
≤ 2.5 |
0.1mv/1uw |
≤ 2us |
50mw |
SMA-SMA/JK K-SMB/JK |
37 43 |
|
XB-CDT-26.5 |
1~26.5 |
≤ 2.5 |
0.08mv/1uw |
≤ 2us |
25mw |
SMA-SMA/JK K-SMB/JK |
37 43 |
|
XB-CDT-33 |
1~33 |
≤3 |
0.08mv/1uw |
≤ 2us |
10mw |
K-SMB/JK |
43 |
|
XB-CDT-40 |
1~40 |
≤3 |
0.08mv/1uw |
≤ 2us |
10mw |
K-SMB/JK |
43 |
※ 以上只是常规产品，其它品种的频率覆盖范围可根据客户需求选择和定制。
